Digital Induction Heating Machine for Welding Preheat and Heat Treatment
起源の場所 シェンゼン 中国
ブランド名 canroon
証明 CE ISO9001:2008
モデル番号 CR2000
最小注文数量 1 個
価格 45000US $ FOB
パッケージの詳細 カートンかあなた次第
受渡し時間 お支払い確認後1週間
支払条件 FOB
供給の能力 1 週間あたり 20 ピース/ピース
商品の詳細
制御モデル デジタル制御 入力電源 3-Phase 380V
共鳴 共鳴シリーズの 温度 最高1450°F
体重 142kg 定数出力 80KW 1-35KHZ
申請 溶接と熱処理用 冷却モード 空冷式
製品の説明

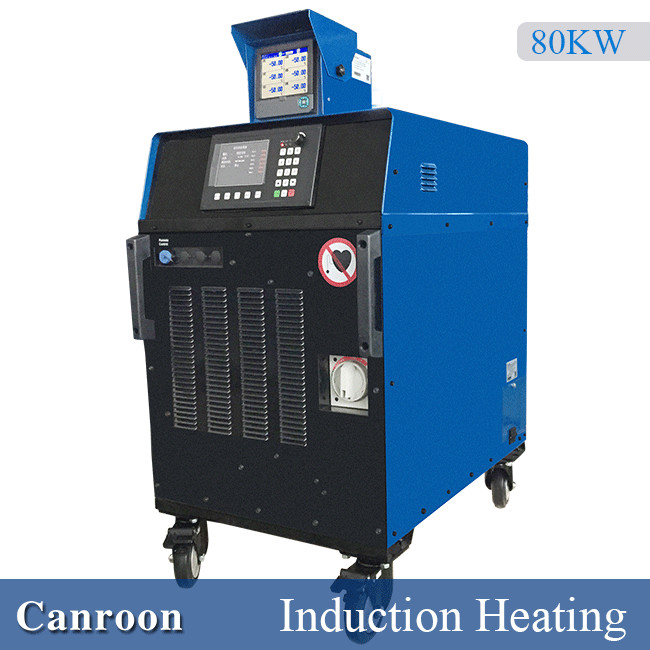

Digital Induction Preheating Machine 80kW for Welding Heat Treatment





The Canroon CR2000-080A-14T is a high-performance digital induction preheating machine engineered for efficient, uniform heat treatment in welding and fabrication applications. With a maximum output of 80kW and an advanced air-cooled system, it delivers rapid and consistent heating up to 1450°F (790°C).

Equipped with six thermocouple inputs, this system ensures precise temperature monitoring and control. Its intuitive digital interface supports ramp-and-hold programming, making it easy for operators to set up and execute complex heating processes. Compared to conventional methods, CR2000 achieves faster time-to-temperature with improved energy efficiency and operator safety.



Quick Details

  • Type: Induction Heating Equipment
  • Brand Name: Canroon
  • Model: CR2000-080A-14T
  • Origin: China
  • Input Voltage: 380V, 3-Phase, 50Hz
  • Rated Power: 80kW
  • Current: 122A
  • Duty Cycle: 100%
  • Cooling Method: Air-Cooled
  • Dimensions (mm): 880 × 663 × 982
  • Weight: 201kg
  • Control: Digital Controller
  • Temperature Range: Up to 1450°F (790°C)
  • Temperature Recorder: 6-channel optional
  • Certification: CE, ISO9001:2008
  • Application: Welding preheating, PWHT, shrink fit, coating removal
  • After-sales Service: Global service center support



Applications:

The CR2000 series is widely applied in:

  • Welding preheating and post-weld heat treatment (PWHT)
  • Pipeline and structural steel fabrication
  • Coating or paint removal
  • Shrink fitting of mechanical parts
  • Heat treatment for offshore, petrochemical, and power plant maintenance



Specifications:



Input Amperes at Rated Output

380V:122A

Thermal conversion efficiency

More than 90%

Maximum Rated output

80KW

Cooling Mode

Air cooled

Input Power

380V 3-Phase,50HZ

Rated Output

80KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder

Optional

Control Model

Digital Control

Resonance

Series Resonance

Temperature

Max 1450°F

Dimensions

H:880MM W:663MM D:982MM

Transportation

By sea or By Air

Weight

201KG

Warranty

12 Months





Key Advantages :

  • Portable & Versatile: Optional wheel kit enables easy mobility for on-site welding and maintenance.

  • Advanced Temperature Control: Supports both manual and automatic modes with user-friendly interface.

  • Accurate Monitoring: Six thermocouple inputs ensure uniform heating and controlled cooling.

  • Fail-Safe Design: Includes output detection and isolation fault protection for safe operation.

  • Low Operating Costs: No fuel required; reusable insulation reduces consumable expenses.

  • Uniform Heat Distribution: Heats from within the material for consistent results, minimizing overheating.

  • Fast Time-to-Temperature: Faster heat-up than traditional methods, shortening cycle times.

  • Improved Safety: No open flames or combustible gases, ensuring a safer working environment.

  • High Energy Efficiency: >90% thermal conversion efficiency enhances productivity and reduces costs.

  • Easy Setup: Compatible with preheat blankets and flexible cables, simplifying deployment.
