Water-Cooled Induction Brazing Equipment for Copper, Steel, Brass | Portable & Efficient
商品の詳細
| 力 | 10-50kw、（10-300kwを供給できる） | 頻度 | 中間周波数、高周波 |
|---|---|---|---|
| ブランド | Canroon、中国の一流の製造業者 | パッキング | 木製のケース |
| 配送 | 要求するように、海明白な空気 | 誘導加熱 | IGBT |
| 回路 | デジタル回路制御 | デザイン | モジュラー設計 |
| 応用 | 誘導加熱ろう付け、堅くなること、金属の熱処理、等 | 適切な金属 | 銅、黄銅、鋼鉄、アルミニウム、鉄、等 |
製品の説明

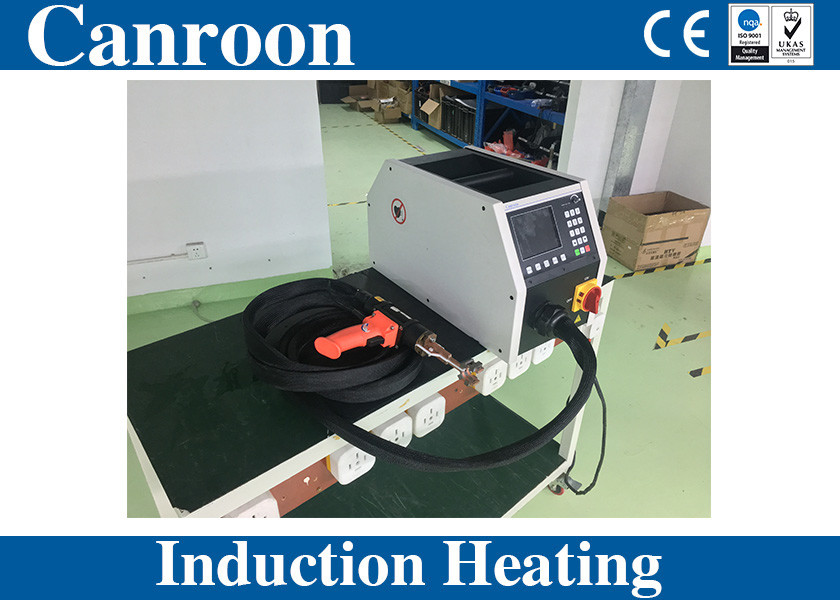

Water Cooling High Frequency Portable Induction Brazing Equipment
Brief introduction of Canroon water cooling high frequency portable induction brazing equipment:
CR2100 series induction brazing equipment, designed with digital circuit and modular design, equipped with LCD display, bring you advanced system with reliability, and high efficiency.
for portable type, machine is small in size, light in weight, water cooling induction cable, HHT/handheld coaxial transformer for easy handle and operation, for the inductor, we can customize it according to your workpiece.
Application details:
Materials:
All metal materials including iron, copper, zinc, tin, aluminum, silver, stainless steel, titanium, nickle, etc.
Applications:
Brazing, Hardening, Annealing, Straightening, Shrink Fitting, Bolt Untighten, Paint/Coating Removal, etc.
Workpieces:
<> Electric motor: short circuit ring, flip ring, armature winding, flat copper wire, etc.
<> Heat exchanger: copper tube;
<> Automobile die;
<> Crank shaft;
<> Oil&gas pipe.
see the following detailed application of induction brazing for copper wire, heat exchanger, rotor coil, rotor bar, short circuit ring, copper plate, brass/slip ring, etc
Technical Parameters of portable high frequency induction hardening machine:
| Model | Rated input voltage & frequency | Rated input power | Rated input current | Output frequency | Cooling water pressure / flow rate | Dimension |
| CR2100-010B-14TW1 | 3-phase /400V (±20%) 50/60Hz |
10KVA | 15A | 10~40KHZ |
4~6 bar ≥12L/min |
L: 581mm W: 283mm H: 334mm |
| CR2100-015B-14TW1 | 15KVA | 22A | ||||
| CR2100-020B-14TW1 | 20KVA | 30A | ||||
| CR2100-025B-14TW1 | 25KVA | 37A |
4~6 bar ≥19L/min |
|||
| CR2100-030B-14TW1 | 30KVA | 45A | ||||
| CR2100-035B-14TW1 | 35KVA | 53A | ||||
| CR2100-040B-14TW1 | 40KVA | 60A | ||||
| CR2100-050B-14TW1 | 50KVA |
75A |
Product features:
1. High efficient: thermoelectric conversion efficieny: >85%;
2. Enviromental friendly: zero pollution, zero discharge;
3. Intelligent: PID temperature closed-loop control, precise temperature control;
4. Wide application: for all metal wiredrawing products, including metal or alloy such as copper, iron, zinc, tin, aluminum, silver, stainless steel, titanium, nickel.
5. Operation interface: humanized MMI, chinese/ English available;
6. Multiple control interfaces: Heating process can be controlled accurately by feedback signal sent to the microcontroller from remote control unit; support 0-10v, 4-20mA analog signal control; support RS-485 communication;
7. Automation integration: Quickly and easily integrated into automated production lines;
8. Multiple heating modes: constant power mode, Time VS Power heating mode; Multi-segment heating mode;
